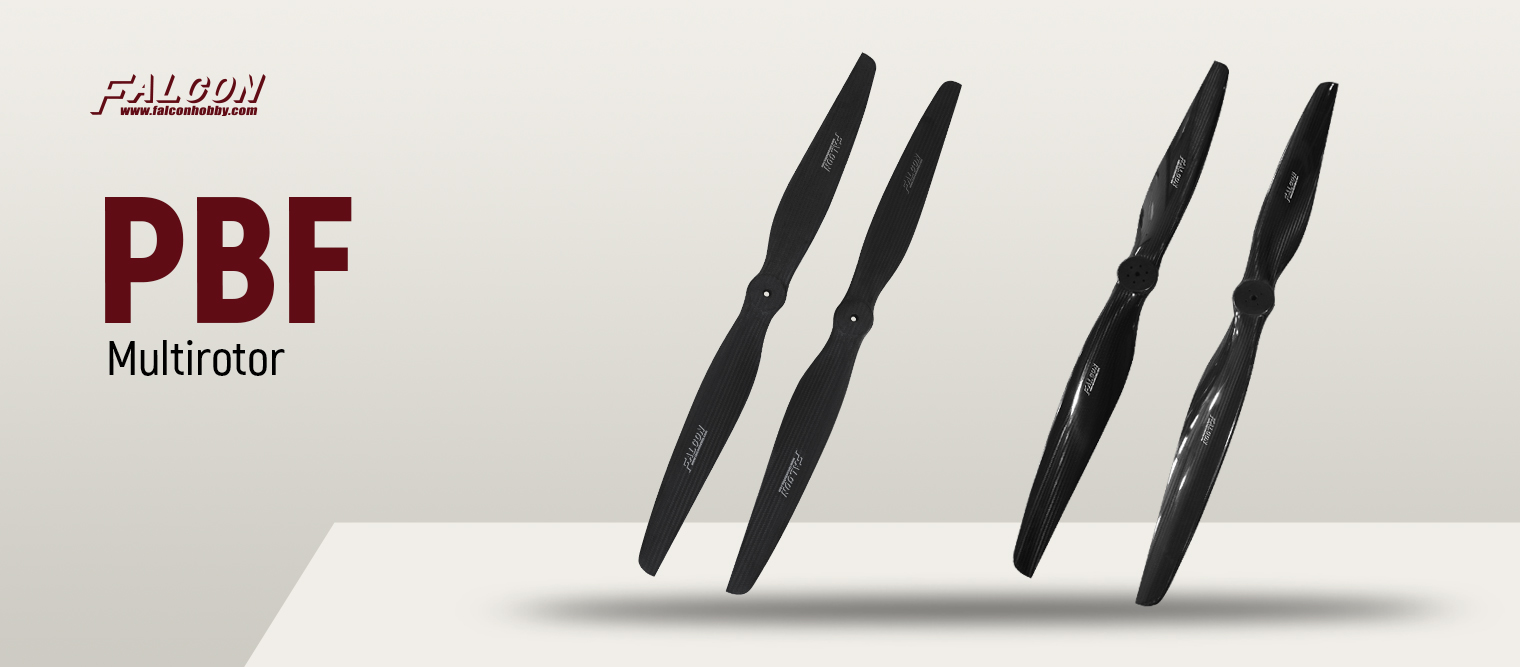

PBF - Multirotor

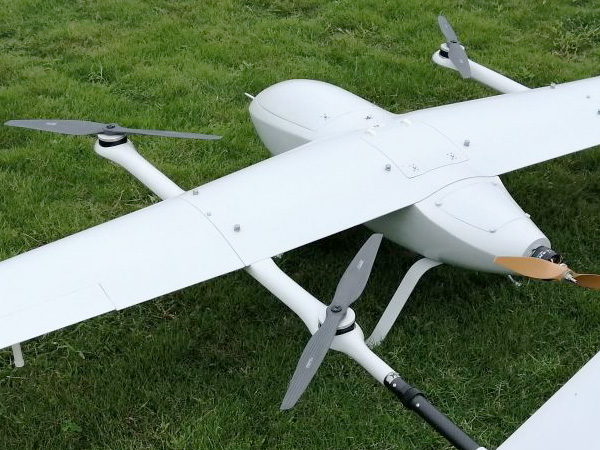

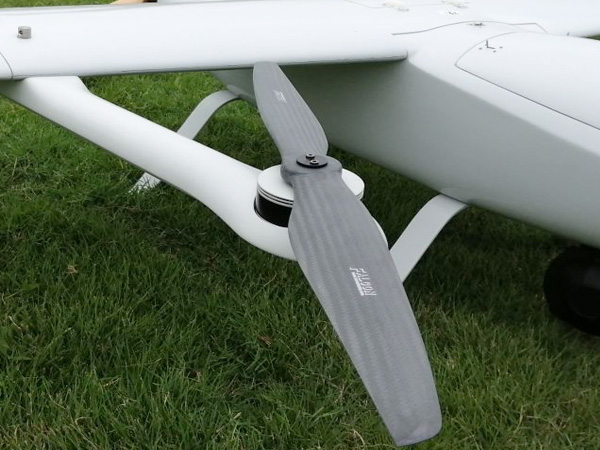

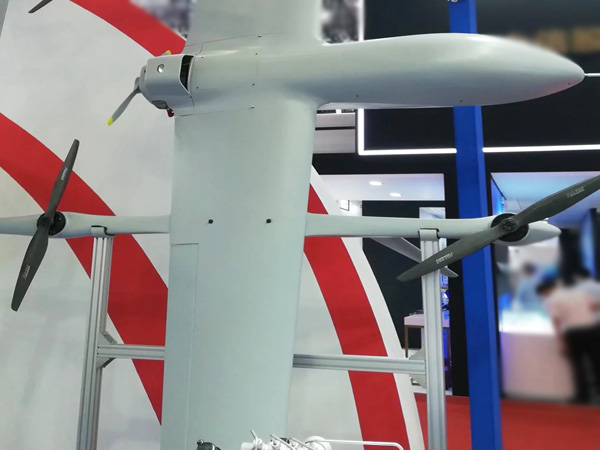

Suitable for VTOL and fixed wing.
▌Features
● Heavy payload
● Save space with same thrust
● Less air drag during cruise
▌Technical Data
42x16.5 (28.33℃, 1009.6hPa, 37.72%Rh)
| RPM | T(kgf) | W | gf/W |
| 921.00 | 3.02 | 143.23 | 21.05 |
| 1385.00 | 6.92 | 495.17 | 13.97 |
| 1850.00 | 12.48 | 1194.78 | 10.44 |
| 2314.00 | 19.77 | 2374.82 | 8.32 |
| 2778.00 | 28.73 | 4139.22 | 6.94 |
| 3229.00 | 39.43 | 6687.60 | 5.90 |
| 3373.00 | 43.52 | 7710.32 | 5.64 |
▌Parameters
| Diameter(Inch) | Pitch(Inch) |
| Note: "W" (wide blade) | |
| 16.1 | 6.4 |
| 17.1 | 6.8 |
| 18.1 | 7.2 |
| 19.1 | 7.6 |
| 20.1 | 8 |
| 22.1 | 7.4, 8.8 |
| 24.1 | 9.6 |
| 26.1 | 8.7, 10.4 |
| 27.1 | 10.8 |
| 28.1 | 9.2, 11.2 |
| 29.1 | 11.6 |
| 30.1 | 12, 13.2 |
| 32.1 | 12.8 |
| 32.5 | 14W |
| 34.1 | 11.4, 13.6, 15.2, 16.7 |
| 36.1 | 14.4, 15.8 |
| 38.1 | 13.5, 15.2 |
| 40.1 | 16, 17.5 |
| 42 | 15, 16.5, 18 |
| 42.1 | 14.6 |
| 45 | 17.5, 18.9 |
| 48 | 21.8 |
| 48.1 | 20.2 |
