Product Details ⇣

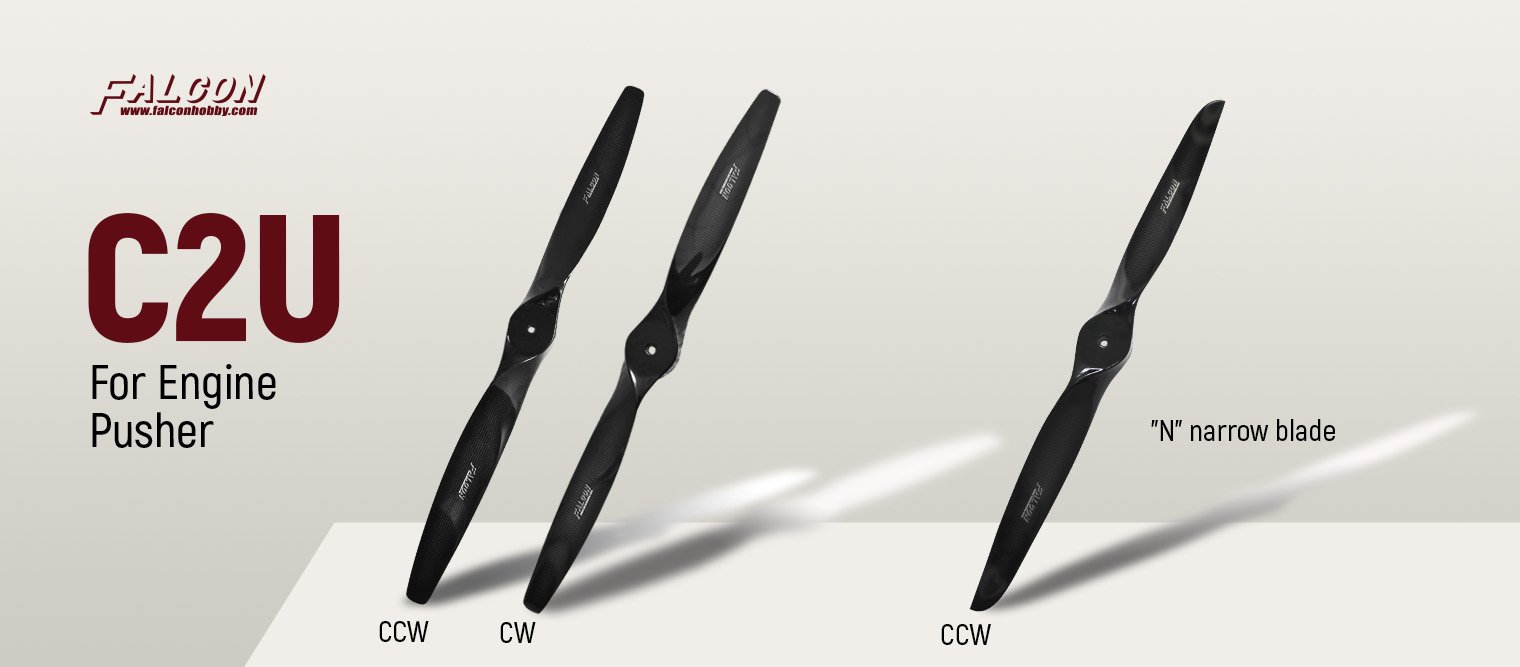

C2U - Gas Engine Pusher Propeller
▌Features
● Heavy payload
● Long endurance
● Carbon fiber and Glass fiber material optional
▌Technical Data
26x16 (10.24℃, 1019.8hPa, 43.09%Rh)
| RPM | T(kgf) | W | gf/W |
| 2309 | 3.89 | 308.06 | 12.63 |
| 3544 | 9.23 | 1225.87 | 7.53 |
| 4417 | 14.28 | 2480.72 | 5.76 |
| 5099 | 19.24 | 3987.25 | 4.82 |
| 5645 | 23.86 | 5621.94 | 4.24 |
| 6103 | 28.09 | 7439.41 | 3.78 |
| 6646 | 32.36 | 10221.99 | 3.17 |
| 7279 | 38.70 | 14599.16 | 2.65 |
▌Parameters
| Diameter(Inch) | Pitch(Inch) |
| Note: CW (highlighted in yellow in the parameters), CCW (no color marked in the parameters) and "N"(narrow blade) | |
| 16 | 14P, 14.5P |
| 16.5 | 14P |
| 17 | 12NP, 14P, 17P, 18P |
| 18 | 11NP, 11.5P, 13P, 14P |
| 19 | 13P, 14P |
| 20 | 13P, 14P, 16P, 18P, 19P, 24P |
| 21 | 12P, 14P, 16P, 18P |
| 22 | 13NP, 14NP, 14P, 16P, 17NP, 18P |
| 23 | 14P, 16P, 18P, 20P |
| 24 | 12P, 14P, 15P, 16P, 17P, 18P, 20P, 22P, 24P, 24P(CW), 26P, 29P(CW) |
| 25 | 14NP, 16P, 16P(CW), 18P, 20P, 22P |
| 26 | 10P, 13NP, 14P, 16P, 18P, 20P, 22P, 26P |
| 27 | 15NP, 16P, 18P, 20P, 22P |
| 28 | 14NP, 14P, 16P, 18P, 20P, 22P, 22P(CW), 26P, 28P |
| 29 | 13P, 14P, 16P, 18P, 20P, 22P |
| 30 | 18P, 20P, 22P, 26P |
| 31 | 14NP, 16NP, 16P, 18P, 18.5P, 20NP, 20P, 20P(CW) |
| 32 | 14NP, 16P, 16P(CW), 18P, 18P(CW), 24P, 24P(CW), 26P, 28P(CW), 30P(CW) |
| 32.5 | 22P, 24P |
| 33 | 16P(CW) |
| 34 | 14P, 14P(CW), 16P, 16P(CW), 28P, 28P(CW) |
| 36 | 18P, 28P, 28P(CW) |
| 38 | 17P |
| 39 | 15P |
| 47 | 28P(CW) |
