Product Details ⇣

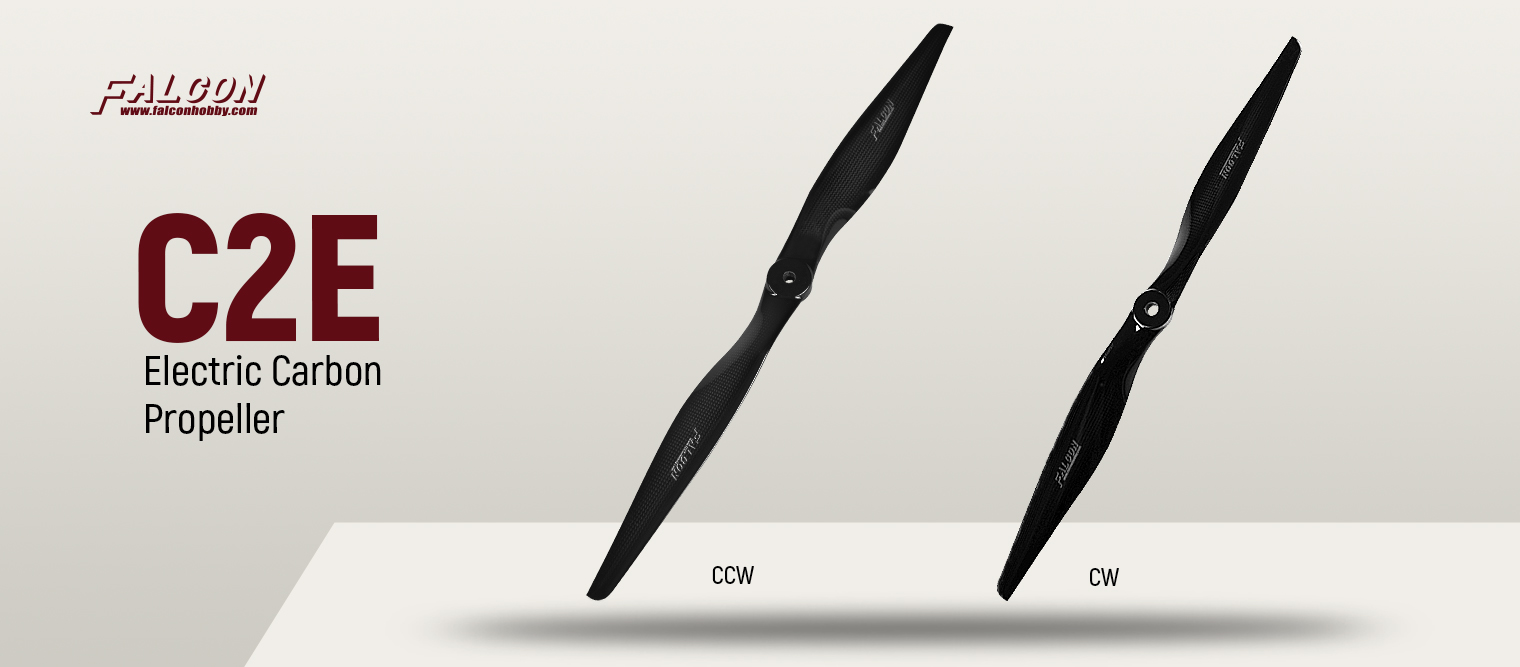

C2E-Electric Carbon Propeller
We have conducted a balancing treatment for each propeller before it leaves the factory, ensuring optimal low vibration and high safety. The weight design of the propeller has undergone multiple improvements to enhance idling performance while also considering high response acceleration performance.
▌Features
● High efficiency
● Light weight
● Low noise
▌Technical Data
22x12 （18.1℃， 1016.4hPa, 51.51%Rh）
| RPM | T(kgf) | W | gf/W |
| 2789 | 2.11 | 155.97 | 13.52 |
| 3442 | 3.18 | 293.05 | 10.83 |
| 4045 | 4.39 | 483.76 | 9.08 |
| 4667 | 5.96 | 768.79 | 7.75 |
| 5238 | 7.47 | 1085.01 | 6.88 |
| 5746 | 9.07 | 1454.40 | 6.24 |
| 6261 | 10.84 | 1911.94 | 5.67 |
▌Parameters
| Diameter(Inch) | Pitch(Inch) |
| Note: CW (highlighted in yellow in the parameters), CCW (no letter marking in the parameters) and "W" (wide blade) | |
| 8 | 5 |
| 8.5 | 6.5W |
| 10 | 5 |
| 11 | 4, 6 |
| 12 | 6, 8, 10, 6(CW), 10(CW) |
| 13 | 5.5, 5(CW), 5W, 6, 6.5, 6.5(CW) |
| 14 | 6, 7, 7(CW), 8, 8(CW), 10, 10(CW) |
| 14.5 | 10, 10(CW) |
| 15 | 4.5W, 5, 6, 6(CW), 7, 8, 8(CW), 10, 10(CW), 15, 15(CW), 20, 20(CW) |
| 16 | 3, 8, 8(CW), 10, 10(CW), 12, 12(CW) |
| 17 | 8, 8W, 8(CW), 10, 12 |
| 18 | 8, 10, 10(CW), 12, 12(CW) |
| 19 | 8, 10, 10(CW), 12, 12(CW) |
| 20 | 10, 11, 11(CW), 13, 13(CW), 14, 15 |
| 20.5 | 12W, 13, 14, 14.5 |
| 21 | 10, 10(CW), 13.5, 14, 14(CW) |
| 21.5 | 13, 13(CW) |
| 22 | 8(CW), 10, 10(CW), 11, 12, 12W, 12(CW), 13, 13(CW), 16 |
| 23 | 10W, 10W(CW), 12, 12(CW) |
| 24 | 9, 10, 10(CW), 12, 12(CW), 13, 13(CW) |
| 25 | 11.5(CW) |
| 25.5 | 13 |
| 26 | 8, 10, 10(CW), 12, 13 |
| 27 | 10, 11, 12, 13 |
| 28 | 10, 12, 13 |
| 29 | 10, 11, 12 |
| 30 | 12 |
| 32 | 10, 10(CW) |
