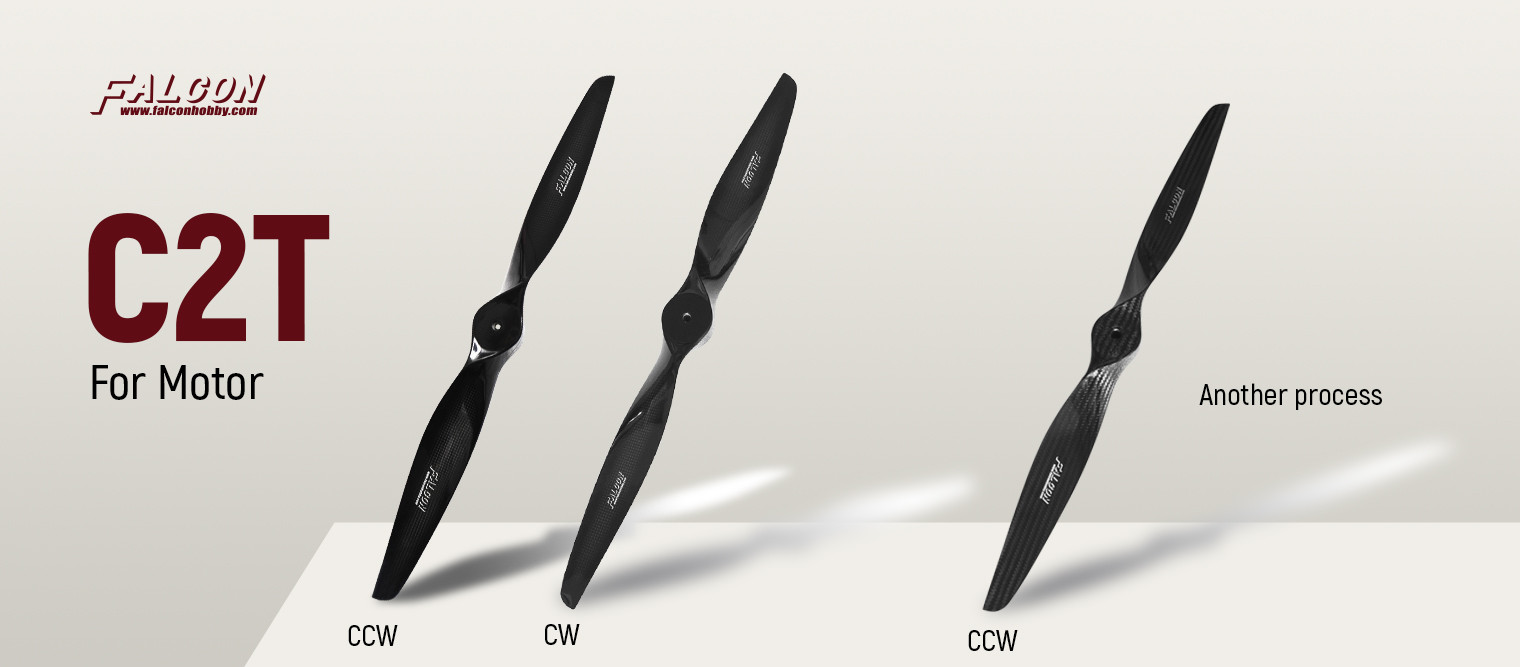

C2T - Carbon Fiber Pusher Propeller
It's used for eVTOL and fixed wing. Suitable for high speed cruising applications.
▌Features
● Pusher propeller
▌Technical Data
26x20P (14.45℃, 1020.4hPa, 35.32%Rh)
| RPM | T(kgf) | W | gf/W |
| 2150 | 3.61 | 423.74 | 8.51 |
| 3333 | 9.39 | 1479.94 | 6.34 |
| 4154 | 14.66 | 2920.72 | 5.02 |
| 4751 | 18.28 | 4736.57 | 3.86 |
| 5278 | 22.15 | 6737.75 | 3.29 |
| 5795 | 26.46 | 9399.20 | 2.82 |
| 6482 | 33.16 | 14143.10 | 2.34 |
| 6963 | 37.52 | 18016.74 | 2.08 |
▌Parameters
| Diameter(Inch) | Pitch(Inch) |
| Note: CW (highlighted in yellow in the parameters) and CCW (no color marking and followed by letter "P"） | |
| 14 | 10P, 12(CW), 14P |
| 15 | 10P, 12P, 14P |
| 16 | 12P, 14P, 16P |
| 17 | 14(CW), 14P, 16P |
| 18 | 8P, 10P, 14P, 16P, 18P |
| 19 | 14P, 16P |
| 20 | 16P, 18P, 20P |
| 21 | 12P, 16P, 18P, 21P |
| 22 | 16P, 18P |
| 23 | 16P, 20P |
| 24 | 16(CW), 16P, 18P, 24P |
| 25 | 18P |
| 26 | 18P, 20P |
| 27 | 22P |
| 28 | 24(CW), 24P |
| 30 | 22P |
| 36 | 38(CW), 38P |
| 46 | 36P |
