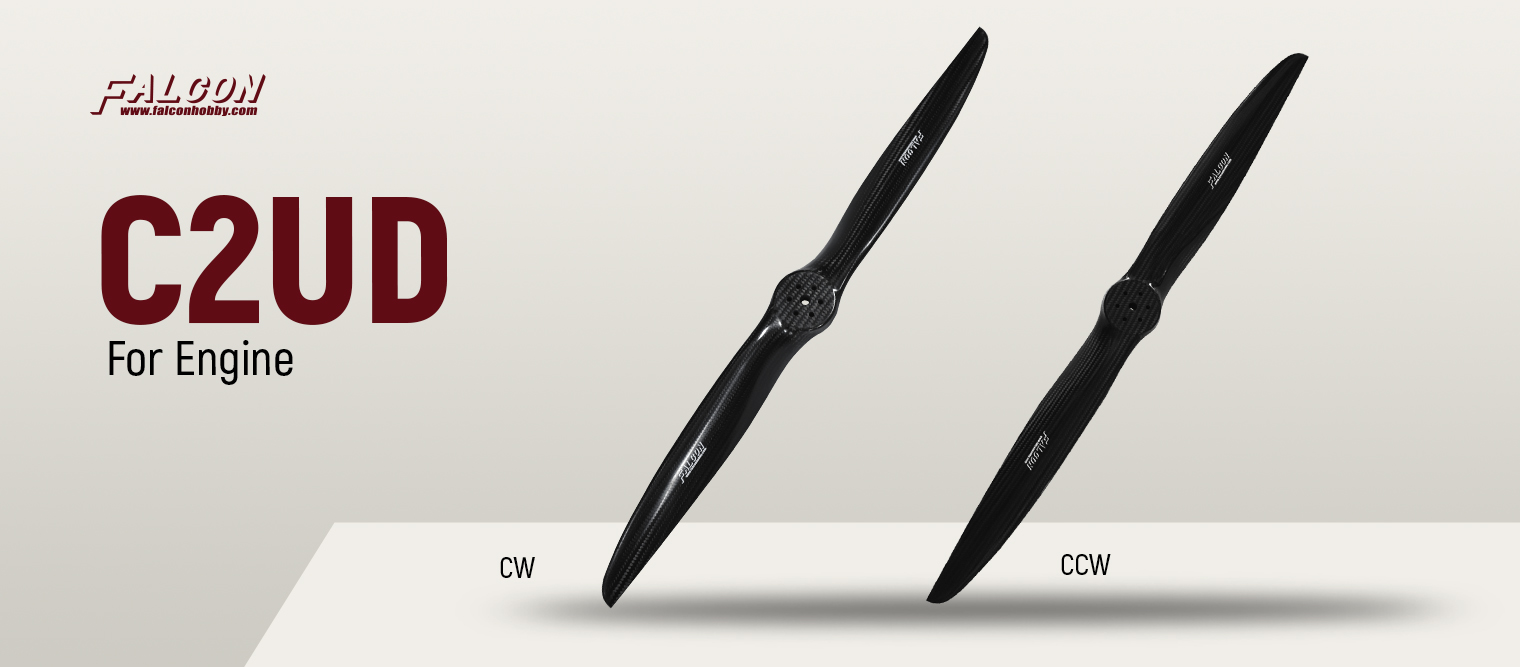

C2UD - Carbon Fiber Propeller
It's for VTOL and fixed wing. And it's suitable for diverse environments and climates.
▌Features
● Pusher and tractor, CW and CCW
▌Technical Data
28x17L (15℃, 1013.25hPa)
| RPM | T(kgf) | W | gf/W |
| 2189 | 4.197 | 427.188 | 9.82 |
| 2712 | 6.436 | 800.326 | 8.04 |
| 3175 | 8.828 | 1273.62 | 6.93 |
| 3719 | 12.254 | 2052.31 | 5.97 |
| 4056 | 14.671 | 2686.29 | 5.46 |
| 4987 | 22.348 | 5114.25 | 4.37 |
| 5225 | 24.407 | 5942.97 | 4.11 |
| 5917 | 32.837 | 9138.28 | 3.59 |
| 6026 | 34.305 | 9731.71 | 3.53 |
| 6875 | 44.587 | 15822.6 | 2.82 |
| 7038 | 46.191 | 17238.9 | 2.68 |
| 7699 | 53.285 | 24105.2 | 2.21 |
▌Parameters
| Diameter(Inch) | Pitch(Inch) |
| 18 | 10R, 12R |
| 22 | 16L |
| 25 | 16L |
| 25.8 | 25L |
| 26 | 16L |
| 27 | 28L |
| 28 | 17L, 25L, 27L |
| 29 | 21L |
| 30 | 20R, 21L, 23L, 26L |
| 31 | 11R |
| 32 | 10R |
| 33 | 20L |
| 34 | 14R, 22L, 22R, 24R |
| 35 | 21L, 21R |
