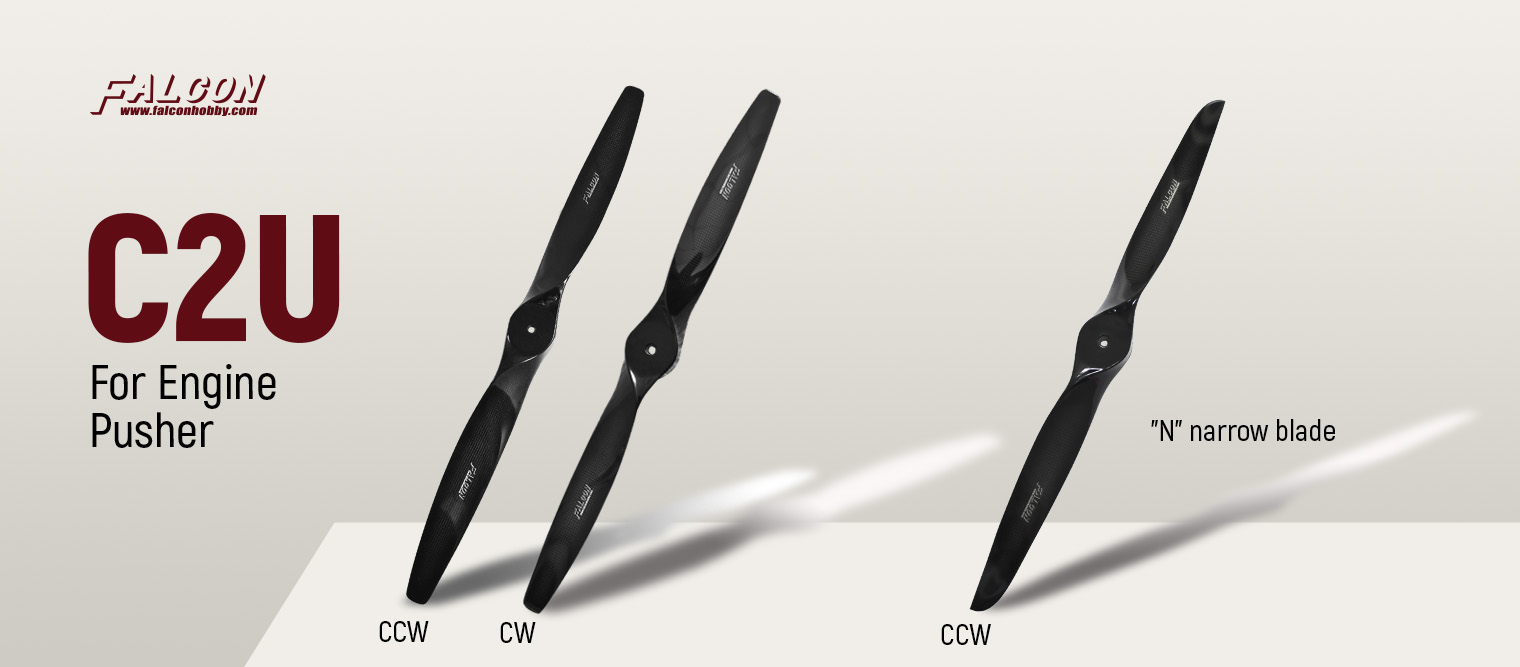

C2U/C2UN - Gas Engine Propeller
C2UNP -- one type of narrow blades propeller
It's suitable for VTOL and fixed wing
▌Features
● Heavy payload
● Long endurance
● Carbon fiber and Glass fiber material optional
▌Technical Data
26x16 (10.24℃, 1019.8hPa, 43.09%Rh)
RPM | T(kgf) | W | gf/W |
2309 | 3.89 | 308.06 | 12.63 |
3544 | 9.23 | 1225.87 | 7.53 |
4417 | 14.28 | 2480.72 | 5.76 |
5099 | 19.24 | 3987.25 | 4.82 |
5645 | 23.86 | 5621.94 | 4.24 |
6103 | 28.09 | 7439.41 | 3.78 |
6646 | 32.36 | 10221.99 | 3.17 |
7279 | 38.70 | 14599.16 | 2.65 |
▌Parameters
Diameter(Inch) | Pitch(Inch) |
16 | 14P |
16.5 | 14P |
17 | 12NP, 14P |
18 | 11NP, 11.5P, 13P, 14P |
19 | 13P, 14P |
20 | 13P, 14P, 16P, 18P, 19P |
21 | 12P, 14P, 16P, 18P |
22 | 13NP, 14NP, 14P, 16P, 17NP, 17P, 18P |
23 | 14P, 16P, 18P, 20P |
24 | 12P, 14P, 15P, 16P, 17P, 18P, 20P, 22P, 24P, 24ZT, 26P, 29P, 29ZT |
25 | 14NP, 16P, 16ZT, 18P, 20P, 22P, 26P |
26 | 10P, 13NP, 14P, 16P, 18P, 20P, 22P, 26P |
27 | 15NP, 16P, 18P, 20P, 22P |
28 | 14NP, 14P, 16P, 18P, 20P, 22P, 22ZT, 26P, 28P |
29 | 14P, 16P, 18P, 20P |
30 | 18P, 20P, 22P, 26P |
31 | 14NP, 16NP, 16P, 18P, 18.5P, 20NP, 20P, 20ZT |
32 | 14NP, 16P, 16ZT, 18P, 18ZT, 24ZT, 26P, 28ZT, 30ZT |
32.5 | 22P, 24P |
33 | 16ZT |
34 | 14P, 14ZT, 16P, 16ZT, 28P, 28ZT |
36 | 12ZT, 18P, 28P, 28ZT |
36.1 | 28P |
38 | 17P |
39 | 15P |
47 | 28ZT |
