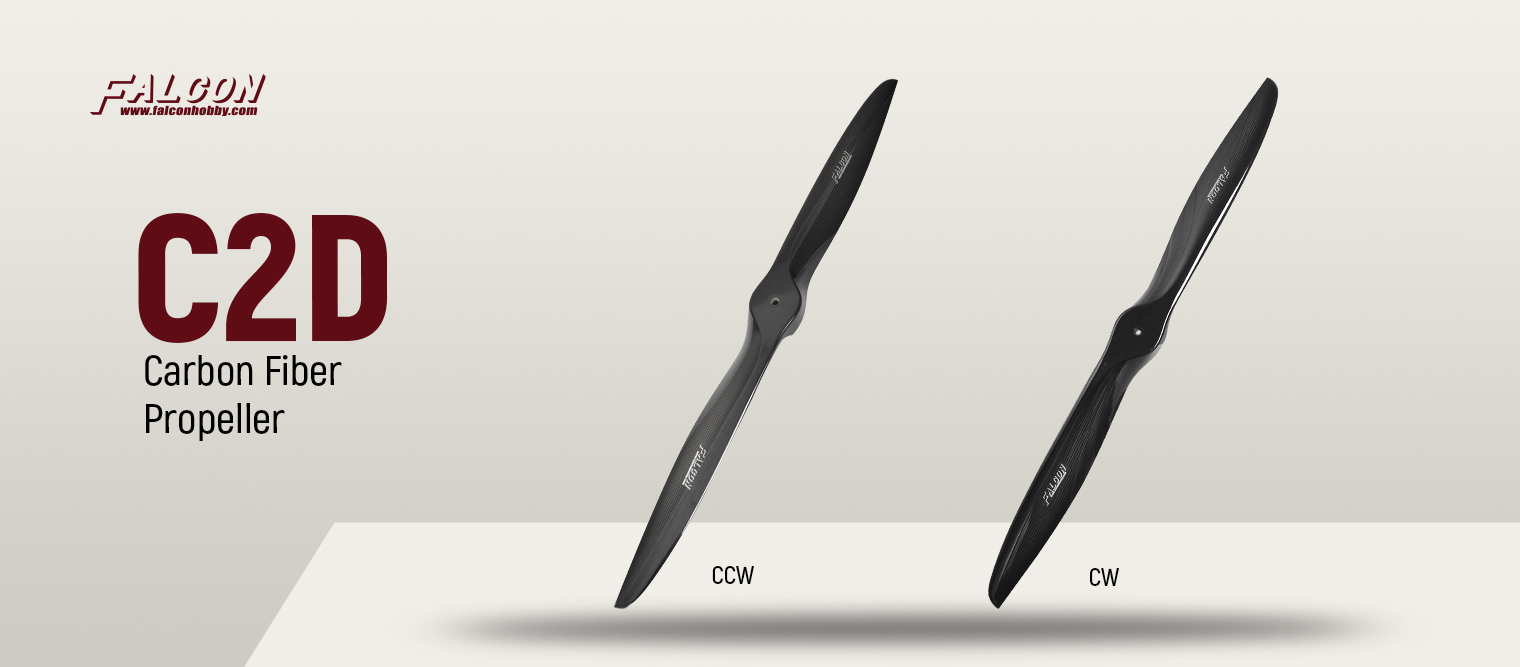

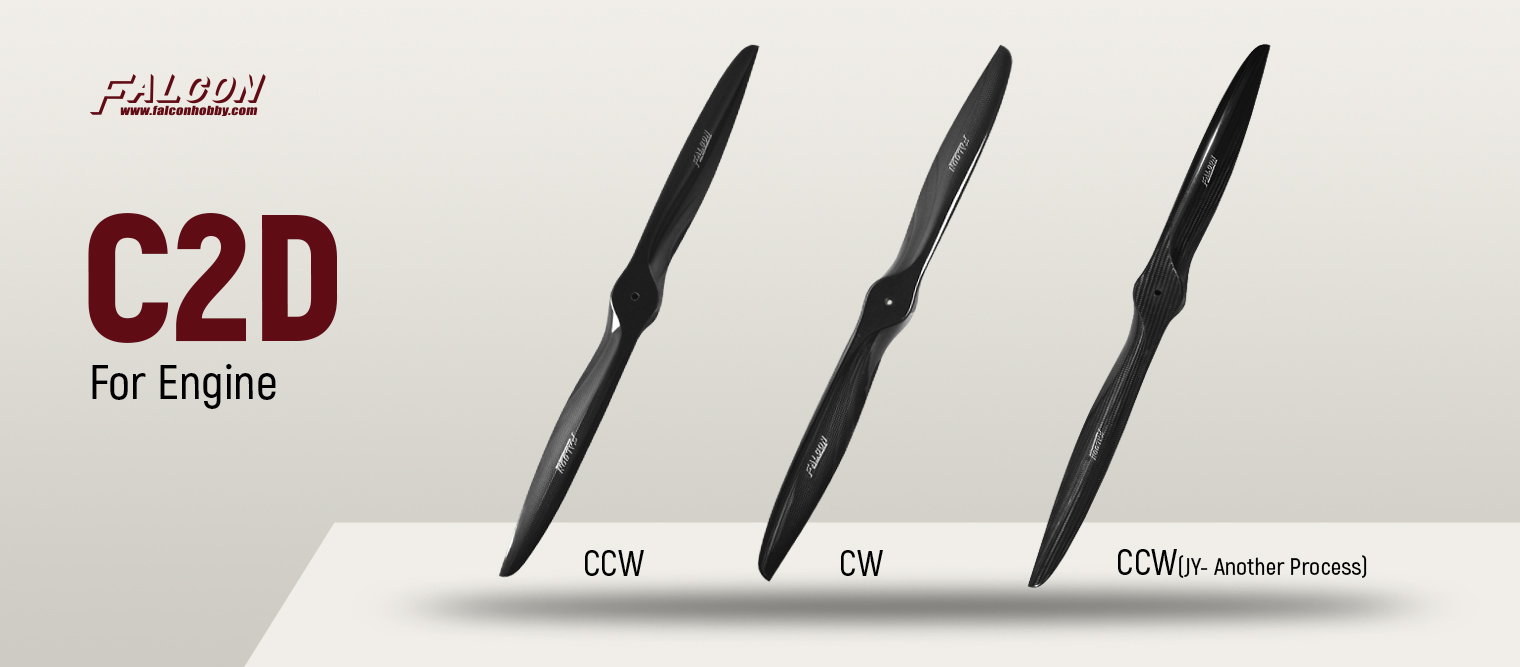

C2D-Carbon Fiber Propeller
We have conducted a balancing treatment for each propeller before it leaves the factory, achieving optimal low vibration and high safety.
▌Features
● High efficiency
● Fast response
● With extremely high flight strength
▌Multiple colors can be customized
▌Technical Data
20x13 (21.42℃, 1001.3hPa, 60.28%Rh)
| RPM | T(kgf) | W | gf/W |
| 1439 | 0.47 | 26.52 | 17.80 |
| 2157 | 1.15 | 85.39 | 13.47 |
| 2821 | 2.01 | 181.69 | 11.08 |
| 3498 | 3.11 | 353.13 | 8.82 |
| 4130 | 4.34 | 569.61 | 7.62 |
| 4745 | 5.66 | 856.67 | 6.61 |
| 5389 | 7.11 | 1237.06 | 5.75 |
| 5965 | 8.67 | 1689.74 | 5.13 |
| 6475 | 10.63 | 2250.55 | 4.72 |
| 7000 | 12.42 | 2843.57 | 4.37 |
▌Parameters
| Diameter(Inch) | Pitch(Inch) |
|---|---|
| Note: CW (highlighted in yellow in the parameters), CCW (no letter marking in the parameters) and "W" (wide blade) | |
| 16 | 8, 9, 10 |
| 17 | 6, 6.5, 7, 8, 10 |
| 18 | 6, 6W, 6.5, 7, 8, 9, 10, 10(CW), 11 |
| 18.5 | 6W |
| 19 | 8, 10, 10(CW) |
| 20 | 6, 7, 8, 9, 9(CW), 10, 11, 12, 13, 15 |
| 21 | 8, 10, 12.5 |
| 22 | 8, 8W, 9, 10, 11, 12, 14, 14(CW) |
| 23 | 8 , 8W, 9, 10, 11, 12 |
| 24 | 8, 9, 10, 11, 12 |
| 25 | 8W, 9, 10, 11, 12, 12(CW), 13 |
| 26 | 8, 8W, 9, 10, 11, 12, 13 |
| 27 | 9W, 10, 11, 12, 13 |
| 28 | 8W, 9, 9W, 9.5, 10, 11, 12, 13, 14 |
| 29 | 9, 9W, 9W(CW), 10, 11, 12, 13, 14 |
| 30 | 9W, 10, 10W, 11, 12, 13, 13W, 13(CW), 14, 15 |
| 31 | 10, 10W, 10W(CW), 11, 12, 13, 14, 16, 16(CW), 26 |
| 32 | 10, 10W, 11, 11W, 12, 13, 14 |
| 32.5 | 12 |
| 33 | 11, 11W, 11(CW), 12, 13, 14, 16 |
| 34 | 12, 13, 14, 16 |
| 36 | 13, 14, 16 |
| 37 | 13 |
| 38 | 14, 16, 18 |
| 42 | 20 |
