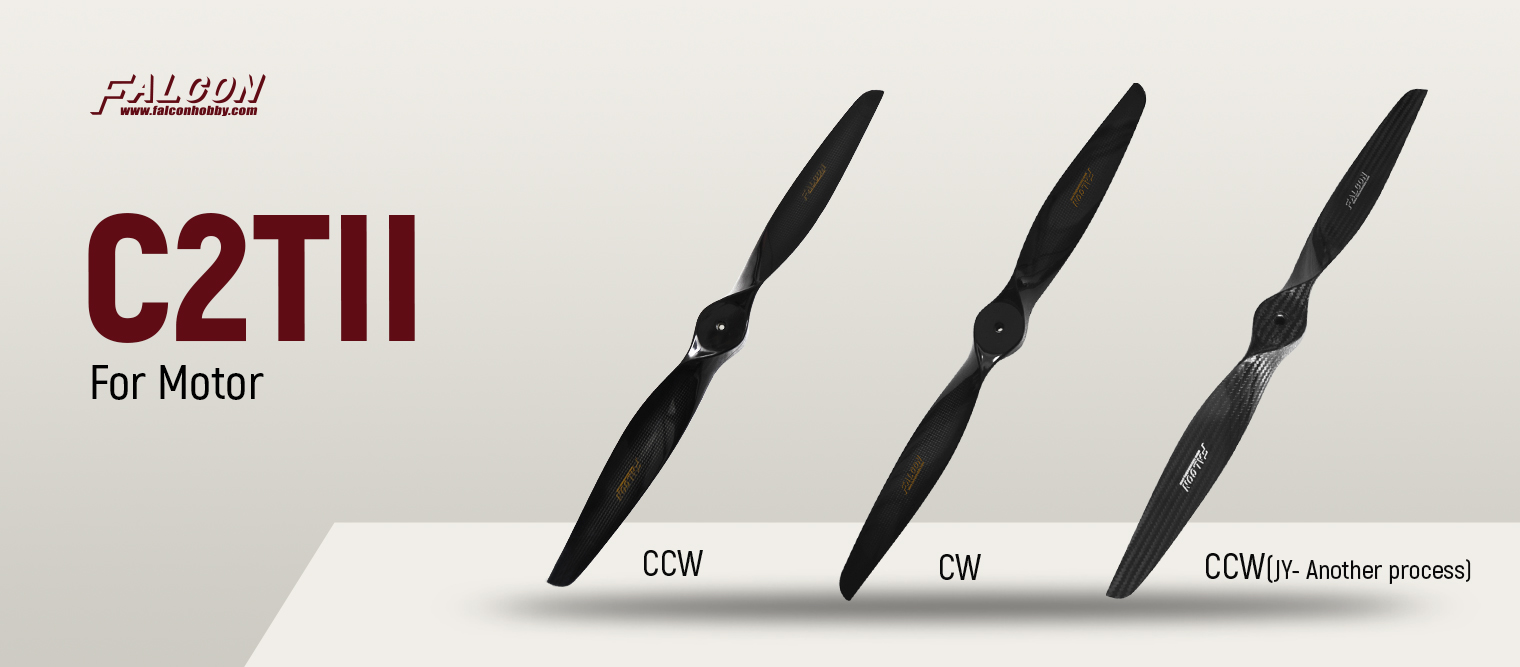

C2TII - Carbon Fiber Pusher Propeller
It's used for eVTOL and fixed wing. With light weight feature.
▌Features
● Pusher propeller
▌Technical Data
24x24P (15℃, 1013.25hPa, 0%Rh)
| RPM | T(kgf) | W | gf/W |
| 2106 | 2.24 | 432.86 | 5.17 |
| 3235 | 5.65 | 1540.87 | 3.67 |
| 4084 | 9.52 | 2039.97 | 3.13 |
| 4753 | 13.11 | 4866.43 | 2.69 |
| 5320 | 16.15 | 6870.08 | 2.35 |
| 5858 | 19.49 | 9487.20 | 2.05 |
| 6270 | 22.27 | 11755.08 | 1.89 |
| 6701 | 25.31 | 14674.40 | 1.72 |
▌Parameters
| Diameter(Inch) | Pitch(Inch) |
| Note: CW (highlighted in yellow in the parameters) and CCW (no color marking and followed by letter "P"） | |
| 14 | 10P, 14P |
| 15 | 12P, 14P |
| 16 | 12P, 14P, 16P |
| 17 | 14(CW), 14P, 16P |
| 18 | 8P, 10P, 14P, 16P, 18P |
| 19 | 14(CW), 14P, 16P |
| 20 | 14P, 16P, 18P, 20P |
| 21 | 16P, 18P, 21P |
| 22 | 16P, 18P |
| 23 | 16P, 20P |
| 24 | 16(CW), 16P, 18P, 24P |
| 25 | 18P |
| 26 | 20P |
| 27 | 22P |
| 28 | 24P |
