C2F
It's used for fixed wing. With light weight feature.

Product Details ⇣

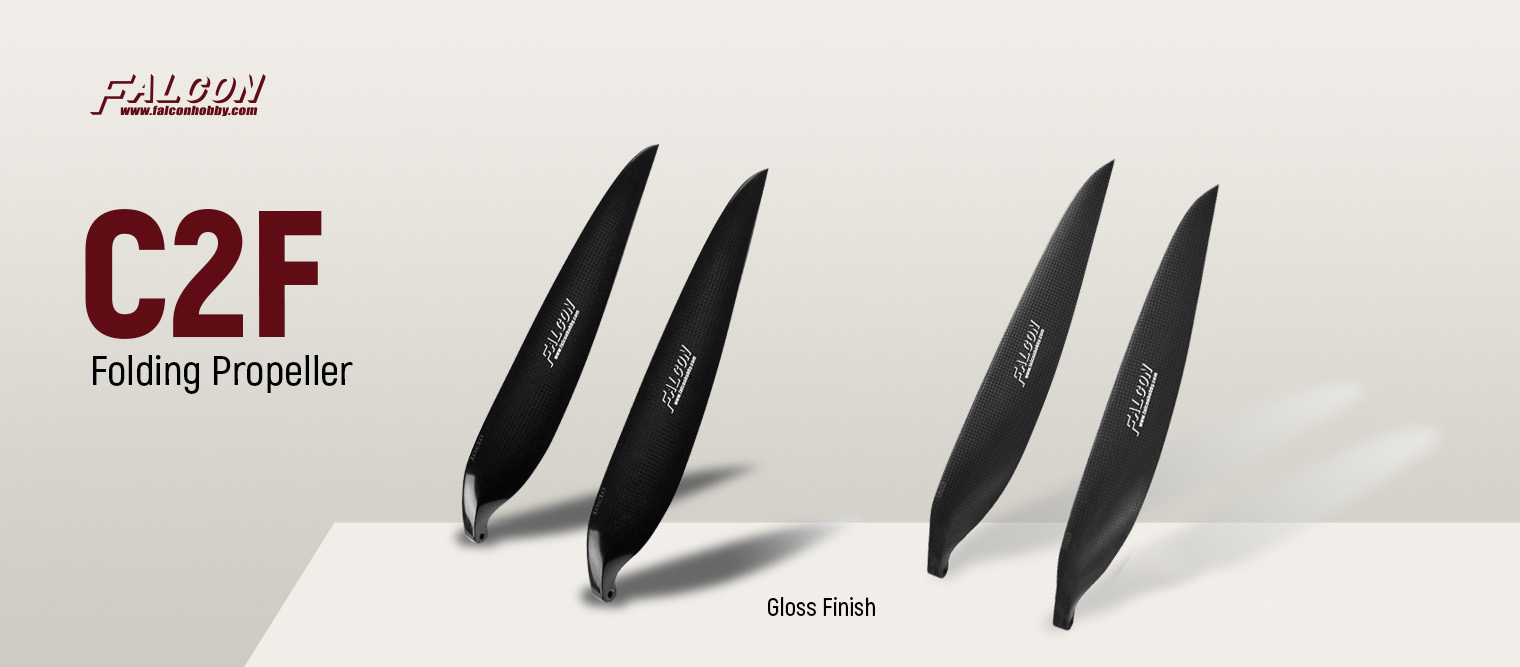

C2F-Carbon Folding Propeller

It's very thin, carefully optimised blade profile and computer-calculated airfoil sections guarantee very high accuracy and excellent efficiency combined with low power absorption from the motor.

All blades are made exclusively from a carbon fiber, which has proved excellent in our propellers over many years, as it endows the blades with very high torsional rigidity.


C2F


▌Features

    ● Light weight


▌Multiple colors can be customized

C2F 白


▌Technical Data
20x14 (11.9℃, 117.7hPa, 30.08%Rh)

RPMT(kgf)Wgf/W
9460.163.9640.28
18860.6041.8714.37
27771.25140.468.89
36352.20319.386.89
45343.44653.345.26
52184.651018.034.57
60106.191624.443.81
65407.302147.813.40


▌Parameters

Diameter(Inch)Pitch(Inch)

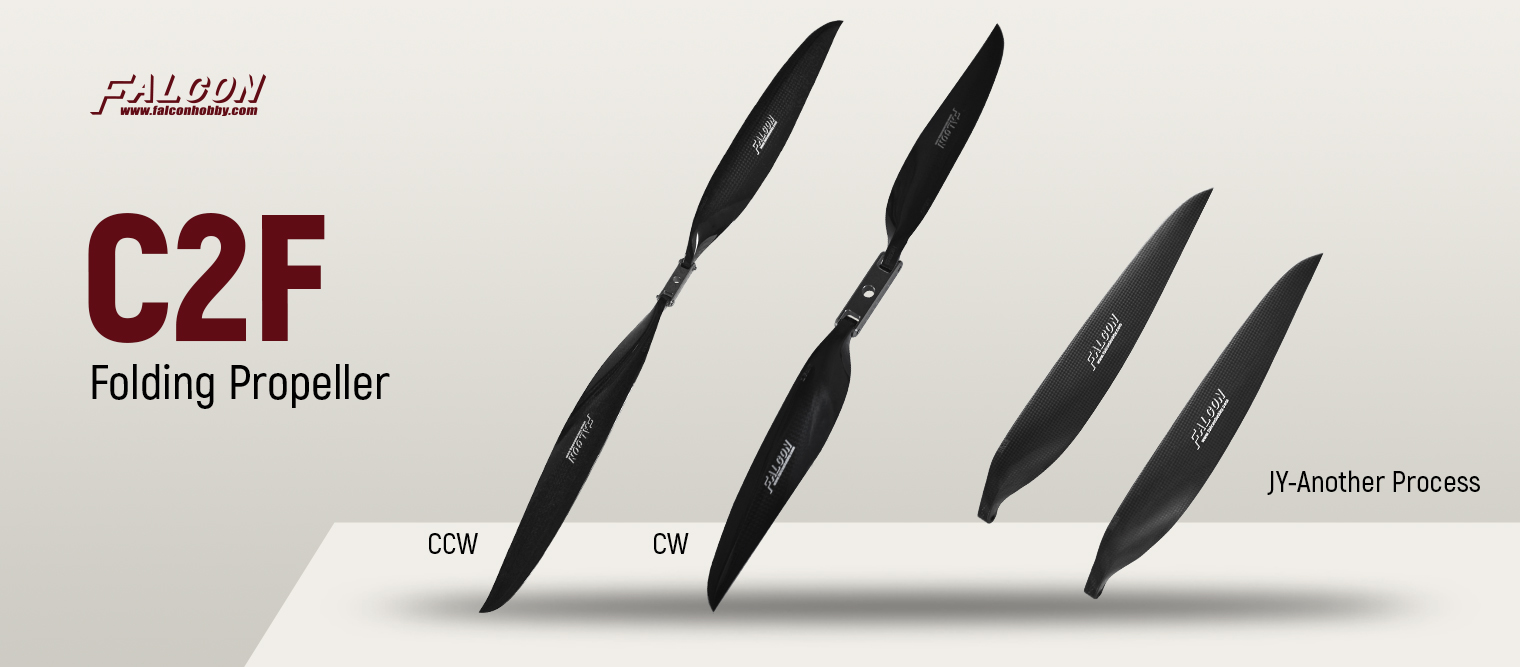

Note:All rotation directions are viewed from the front of the aircraft. CW (clockwise) rotation is indicated in yellow in the parameters, while CCW (counterclockwise) rotation has no letter suffix.
9
6
9.55
106
116, 8
11.57
126, 8, 8(CW), 10, 10(CW)
136, 7, 7(CW), 9
147, 8, 9, 9.5, 10, 10 JY
158, 8(CW), 10, 12, 12 JY
16 8, 8(CW), 10, 13, 13 JY, 14, 16, 16 JY
178, 8 JY, 10, 10(CW), 10 JY, 12, 13, 13 JY, 14, 14 JY
188, 8(CW), 9, 10, 10 JY, 12, 13, 13 JY, 14, 14 JY, 21 JY
198, 10, 12, 12(CW), 12 JY, 13, 14
208, 8(CW), 10, 10(CW), 12, 13, 13(CW), 14
2110, 12, 13, 14
2210, 12, 12 JY, 13, 13 JY, 14
23

12, 12(CW), 13

2410, 10(CW), 12 JY
2612, 12 JY
3012
