C2E
2Blades carbon fiber propeller. Suitable for various types of motors. The high-quality carbon fiber layering process provides exceptional strength.

Product Details ⇣

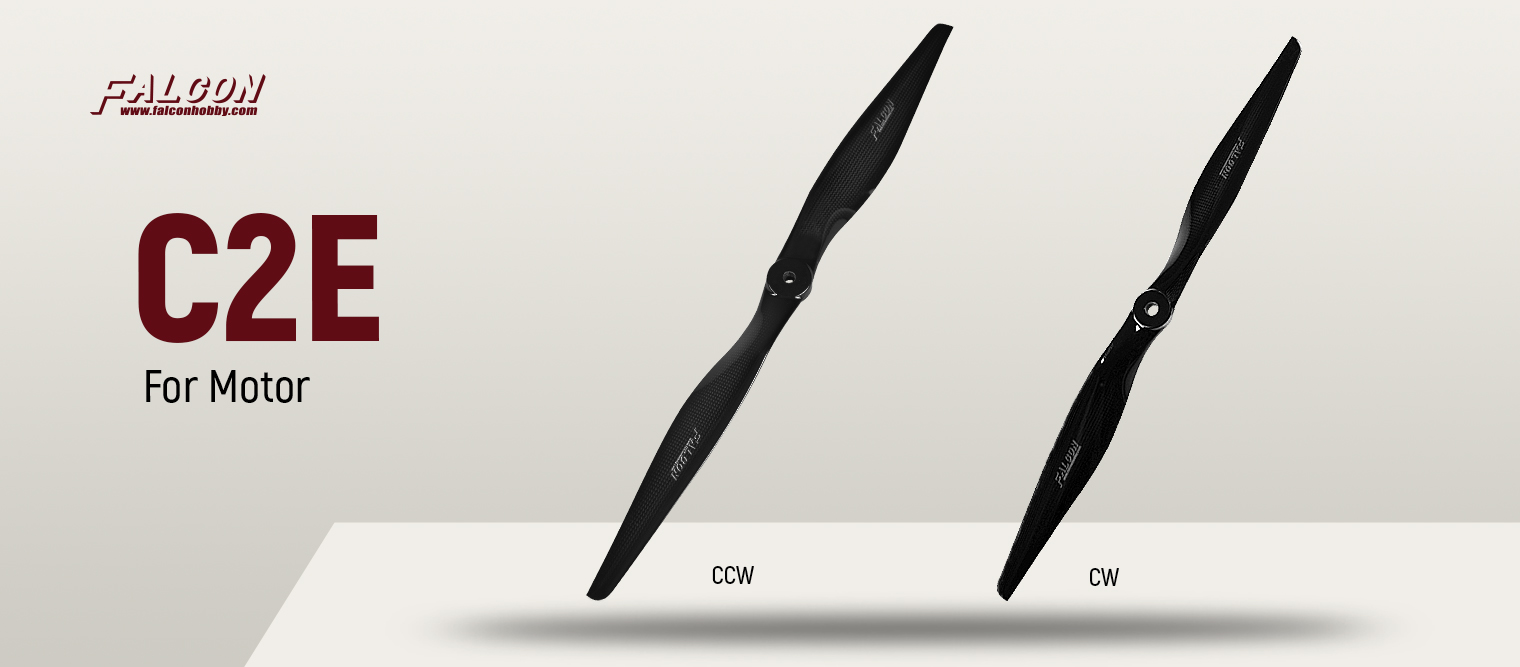

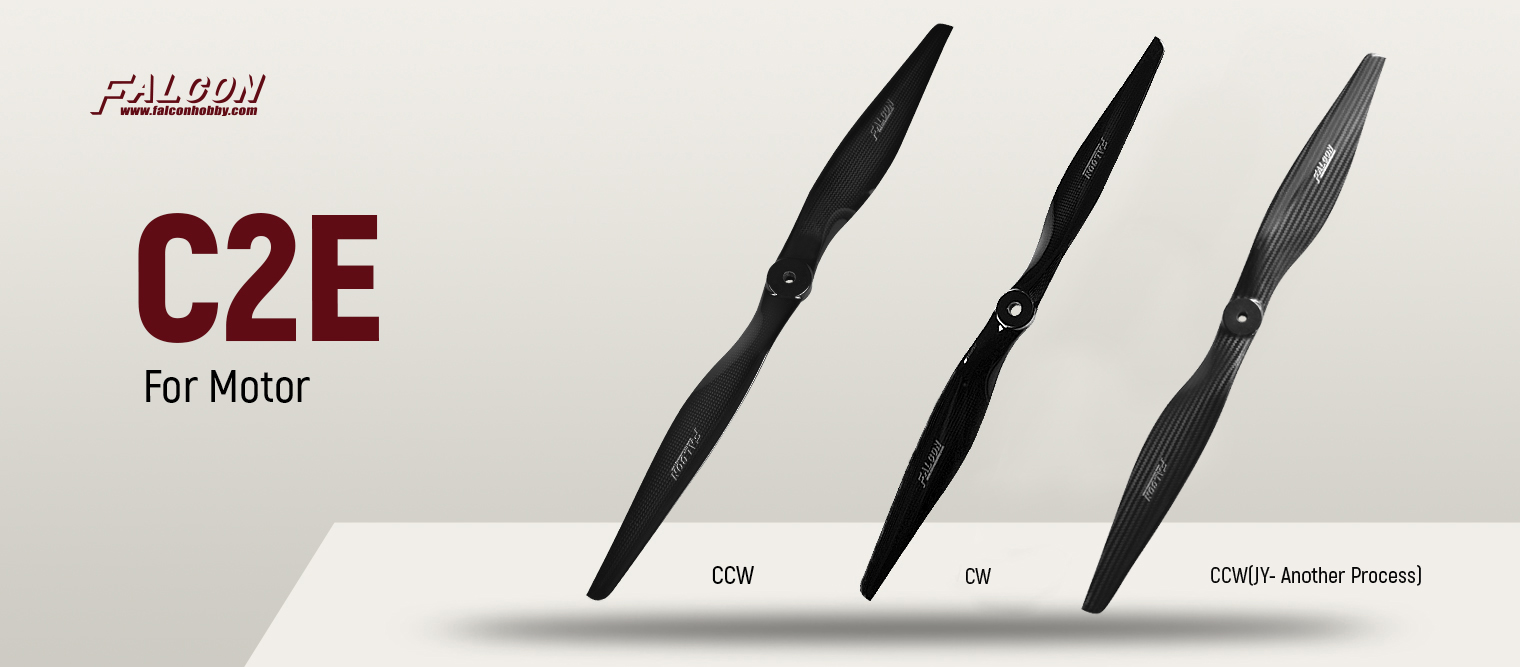

C2E-Carbon Fiber Propeller
It's suitable for various types of motors.


C2E


Features

    ● High efficiency

    ● Light weight

    ● Low noise


▌Technical Data

22x12 (18.1℃, 1016.4hPa, 51.51%Rh)

RPMT(kgf)Wgf/W
27892.11155.9713.52
34423.18293.0510.83
40454.39483.769.08
46675.96768.797.75
52387.471085.016.88
57469.071454.406.24
626110.841911.945.67


Parameters

Diameter(Inch)Pitch(Inch)
8.5
6W, 6.5W
105
114, 6
126, 10, 6P, 10P
135.5, 5P, 5W, 6, 6.5, 7P
146, 7, 7P, 8, 8P, 10, 10P
14.510, 10P
154.5W, 5, 6, 6P, 7, 8, 8P, 10, 10P, 15, 15P, 20, 20P
163, 8, 8P, 10, 10P, 12, 12P
178, 8W, 10, 12
188, 10, 10P, 12, 12P
198, 10, 10P, 12, 12P
2010, 11, 11P, 13, 13P, 14, 15
20.512W, 13, 14, 14.5
2110, 10P, 13.5, 14, 14P
21.513
228P, 10, 10P, 11, 12, 12W, 13, 13P, 16
2310P, 12
249, 10, 10P, 12, 12P, 13, 13P
2511.5P
25.513
268, 10, 10P, 12, 13
2710, 11, 12, 13
2810, 12, 13
2910, 11, 12
3012
3210


Application
